| Type | Common Rail Injection Valve Set |
| Part Number | F00RJ00399 |
| Application | For Diesel Engine |
| Quality | China Made New |
| SKU | G1S8F00RJ00399
G1F1F00RJ00399 F10000B2BJ00399 G1F2F00RJ00399 F20000B2BJ00939 |
| Size | 13cm *2 cm *2 cm |
| Weight | 0.03kg |
WE GIVE YOU MORE
Lorem ipsum dolor sit amet, consectetur adipiscing elit。Ut elit tellus、luctus nec ullamcorper mattis、pulvinar dapibus leo。
Lorem ipsum dolor sit amet, consectetur adipiscing elit。Ut elit tellus、luctus nec ullamcorper mattis、pulvinar dapibus leo。
Owners Manuals
Lorem ipsum dolor sit amet, consectetur adipiscing elit.Utelit tellus,luctus nec ullamcorper mattis,pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Utelit tellus, luctus nec ullamcorper mattis,pulvinar dapibus leo.
1. F00RJ00399 Injection Valve Set Introduction

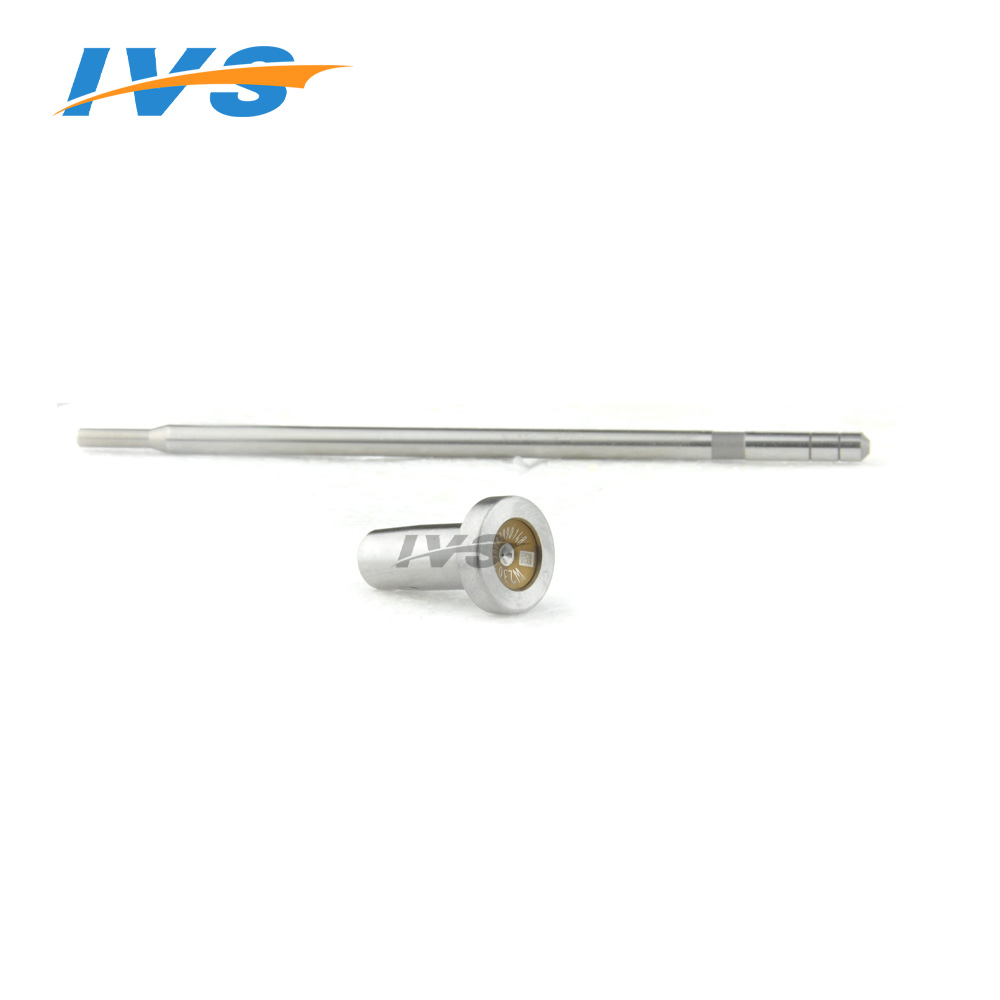

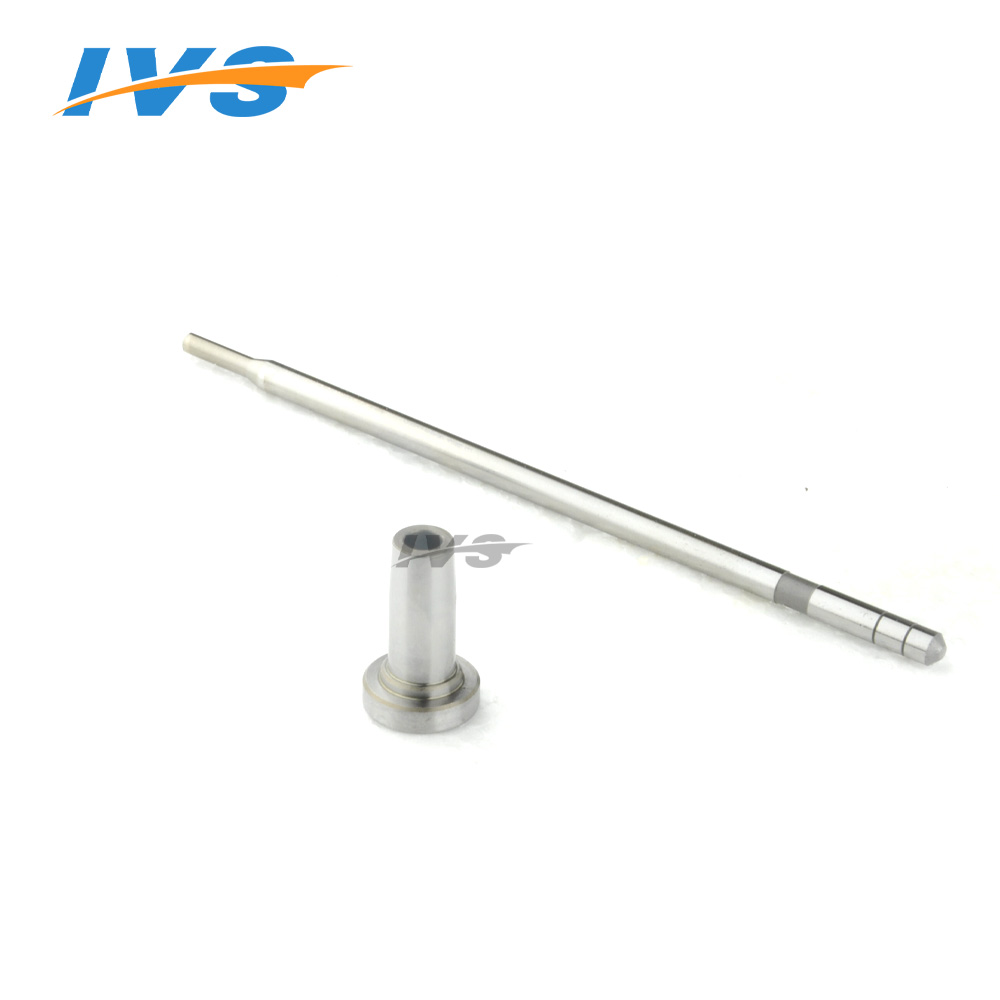

The injection valve set is a critical component of the injector system, comprising the valve stem and valve cap. It is housed in the control room within the injector body and plays a pivotal role in controlling oil injection and return. This set is not only a core component but also prone to high damage rates.
Valve Cap Inspection: Use a microscope to inspect the contact surface between the valve cap and the ball for any signs of damage. If damage is detected, the valve cap should be replaced promptly.
Valve Stem Inspection:
Top of Valve Stem: Examine the top of the valve stem for any surface damage. A change in the original silver color to white indicates damage, necessitating a replacement.
Contact Area with Injector: Similarly, inspect the valve stem’s contact area with the injector for surface damage. Any change from the original silver color to white indicates the need for replacement.
2. F00RJ00399 Injection Valve Set Basic Information
| Title | F00RJ00399 Injection Valve Set China Made New |
| SKU1 | G1S8F00RJ00399 |
| SKU2 | G1S8F00RJ00399/F10000B2BJ00399 |
| SKU3 | G1F2F00RJ00399/F20000B2BJ00399（High quality） |
3. F00RJ00399 Injection Valve Set Application Information
- F00RJ00399 Injection Valve Set Adapted Vehicle Information
| Injector
Part Number |
Car Model | OE Number | OE Number | OE Number |
| 0 445 120 009
|
For IVECO | 503140728 | / | / |
| For RENAULT | 50 10 477 370 | / | / | |
| 0 445 120 010 | For IVECO | 503135258 | / | / |
| For RENAULT | 50 15 509 540 | / | / | |
| For RVI (RENAULT VEHICULES IND.) | 50 10 477 370 | 50 10 550 954 | / | |
| 0 445 120 014 | For IVECO | 503135269 | 42569159 | / |
| For RENAULT | 50 10 477 499 | / | / | |
| 0 445 120 015 | For IVECO | 503135269 | / | / |
| For RENAULT | 50 10 477 499 | 501550955 | / | |
| For RVI (RENAULT VEHICULES IND.) | 50 10 550 955 | 50 10 477 499 | / | |
| 0 445 120 019 | For IVECO | 503135250 | / | / |
| For RENAULT | 50 10 477 874 | 50 10 550 956 | / | |
| For RVI (RENAULT VEHICULES IND.) | 50 10 550 956 | / | / | |
| 0 445 120 020 | For IVECO | 503135250 | / | / |
| For RENAULT | 50 10 477 874 | 501550956 | / | |
| For RVI (RENAULT VEHICULES IND.) | 50 10 550 956 | / | / | |
| 0 445 120 084 | For DONGFENG | D5010477874 | / | / |
| RVI (RENAULT VEHICULES IND.) | 50 10 477 874 | / | / |
- F00RJ00399 Injection Valve Set Adapted injector Information
| Injector Series | Injector Part Number | System Pressure | Re-manufactured Part Number | System Pressure | Universal Number |
| CRIN1-14/16 | 0 445 120 009 | 1400 | / | / | 0 445 120 010 |
| CRIN1-14/16 | 0 445 120 010 | 1400 | / | / | 0 445 120 009 |
| CRIN1-14/16 | 0 445 120 014 | 1600 | 0 986 435 515 | 1600 | / |
| CRIN1-14/16 | 0 445 120 015 | 1600 | 0 986 435 515 | 1600 | 0 445 120 014 |
| CRIN1-14/16 | 0 445 120 019 | 1600 | 0 986 435 523 | 1600 | / |
| CRIN1-14/16 | 0 445 120 020 | 1600 | 0 986 435 523 | 1600 | 0 445 120 019 |
| CRIN1-14/16 | 0 445 120 084 | 1600 | 0 986 435 523 | 1600 | / |
| / | / | / | 0 986 AD1 003 | 1600 | / |
| CRIN1-14/16 | 0 445 120 085 | / | / | / | 0 445 120 009 |
4. F00RJ00399 Injection Valve Set Specifications And Dimensions Parameters
| Injection Valve Set Size | 13 cm*2 cm *2 cm |
| Injection Valve Set Box Size | 14 cm *3 cm *3 cm |
| Injection Valve Set Packing Size | 31 cm *12 cm |
| Injection Valve Set Net Weight | 0.03kg |
| Injection Valve Set Gross Weight | 0.03kg |
| Injection Valve Set Quality | China Made New |
| Injection Valve Set MOQ | 4PCS |
5. F00RJ00399 Injection Valve Set Spare Parts & Packing List
| No. | 1 | 2 |
| Image |  |
 |
| Name | Injection Valve Set | Injection Valve Set Anti-rust Paper |
| Description | Injection Valve Set Part Number F00RJ00399 | Prevent the injector valve set from rusting |
| No. | 3 | 4 |
| Image |  |
 |
| Name | Injection Valve Set Box (Rectangle ) | Injection Valve Set Box (Cylindrical ) |
| Description | Protect the injector valve set from being damaged by colliding | Protect the injection valve set from being damaged by colliding |
| No. | 5 | 6 |
| Image |  |
/ |
| Name | VCI Anti-rust Bag | / |
| Description | Prevent the injection valve set from rusting | / |
- Minors are prohibited from using the injection valve set, Valve Setanti-rust paper, valve Setbox, and VCI anti-rust bag to avoid personal injury.
- The Valve Setbox is recyclable and can be reused.
- VCI anti-rust bag is non-degradable material, please dispose of it properly after use.
6. F00RJ00399 Injection Valve Set Quality Control
- Injection Valve SetTesting
All parts of the injection valve set have undergone precision testing, high temperature testing, low temperature testing, withstand pressure testing, leakage testing, durability testing, and various working conditions testing.
- Injection Valve SetInspection
The factory inspection of the injection valve set is undergone three inspections: full inspection, random inspection, and batch inspection. Different brands of test benches are used to test the same injection valve set for more than three times for factory inspection, and the injection valve set ‘s installation and testing environment are progressed in dust-free workshop.
- Injection Valve SetInstallation
When matching the valve cap and valve steam, Shumatt strictly complies with the standard of valve cap and valve stem clearance technical indicators to ensure that each injection valve set meets the factory standards and use standards.
7. F00RJ00399 Injection Valve Set Purchase and Delivery.
7.1. F00RJ00399 Injection Valve Set Purchase Payment Terms
Payment Terms： T/T, PayPal, Alipay, WeChat
- Please contact our salesmen for specific payment information.
7.2. F00RJ00399 Injection Valve Set Shipping Ways
Destination in China areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.
Destinations out of China’s areas：DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.
7.3. F00RJ00399 Injection Valve Set Lead Time
Lead time: Send out within 3 – 7 working days after receiving payment(Except for special pstemucts and special cases).
7.4. F00RJ00399 Injection Valve Set Logistics Time
DHL Logistics Time:
| Country or Region of Departure | Hong Kong, China | Other Countries or Regions of Asia | Australia and New Zealand | Europe | America | Other Countries |
| China’s Mainland | 7 Days | 7 Days | 8 Days | 8 Days | 8-12 Days | 7-10 Days |
UPS Logistics Time:Country or Region of Departure：China’s Mainland
| Country of Destination | Estimated Arrival Time | Country of Destination | Estimated Arrival Time | Country of Destination | Estimated Arrival Time |
| Japan | 3 Days | UK | 5-7 Days | Egypt | 5-7 Days |
| Turkey | 5-7 Days | Singapore | 3 Days | Switzerland | 5-7 Days |
| Bahrain | 5-7 Days | Latvia | 7-10 Days | New Zealand | 7-10 Days |
| Sri Lanka | 5-7 Days | Thailand | 3 Days | Austria | 5-7 Days |
| Romania | 5-7 Days | Vietnam | 3-5 Days | Estonia | 5-7 Days |
| Malaysia | 3-5 Days | Israel | 5-7 Days | Mexico | 7-10 Days |
| France | 5-7 Days | America | 5-7 Days | United Arab Emirates | 5-7 Days |
| Italy | 5-7 Days | Netherlands | 5-7 Days | Bengal | 7-10 Days |
| Lebanon | 5-7 Days | Philippine | 3-5 Days | Greece | 7-10 Days |
| South Korea | 3 Days | Spain | 5-7 Days | Myanmar | 5-7 Days |
| Canada | 5-7 Days | Germany | 5-7 Days | Saudi Arabia | 7-10 Days |
| Portugal | 5-7 Days | Australia | 5-7 Days | South Africa | 7-10 Days |
| Denmark | 5-7 Days | Belgium | 5-7 Days | Ukraine | 7-10 Days |
| India | 7-10 Days | Qatar | 7-10 Days | Poland | 5-7 Days |
| Indonesia | 3-5 Days | Morocco | 7-10 Days | Pakistan | 7-10 Days |
| Kuwait | 7-10 Days | / | / | / | / |
- The logistics time is for reference only, subjectsare accordingto the actual arrival.
