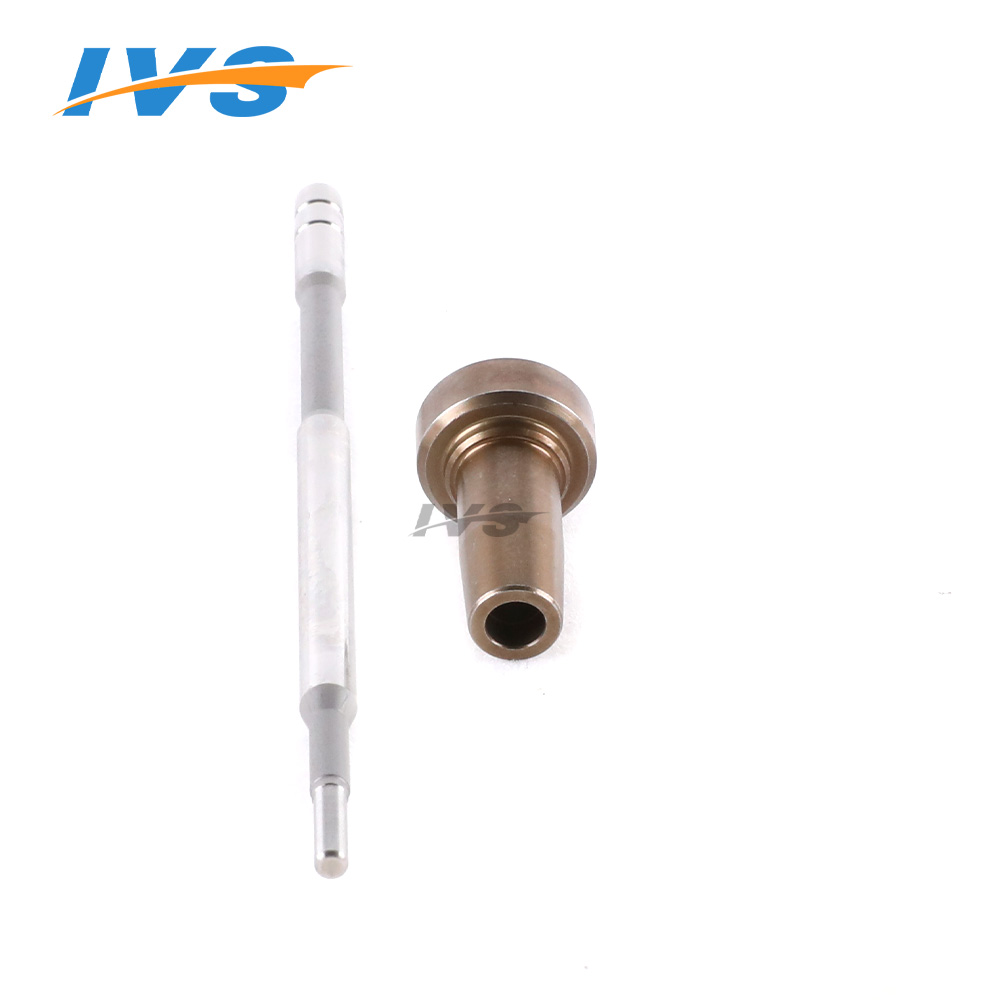

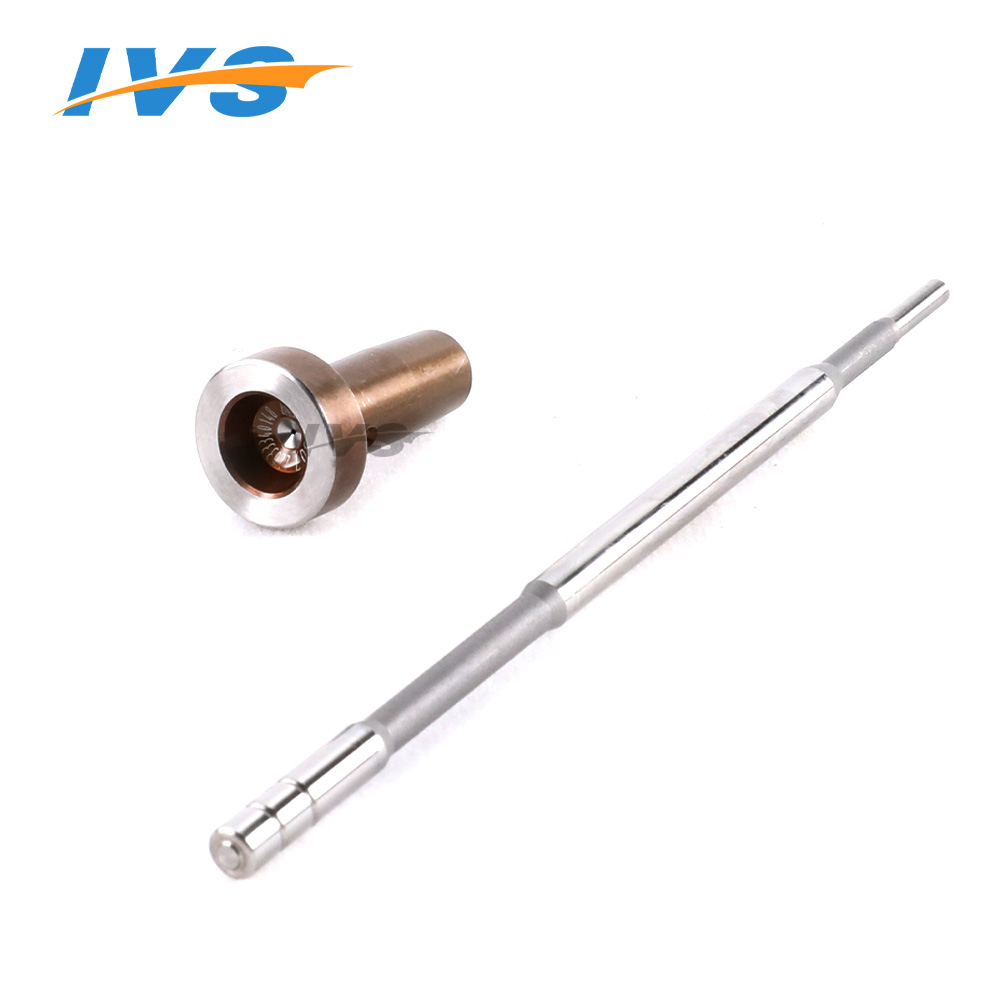

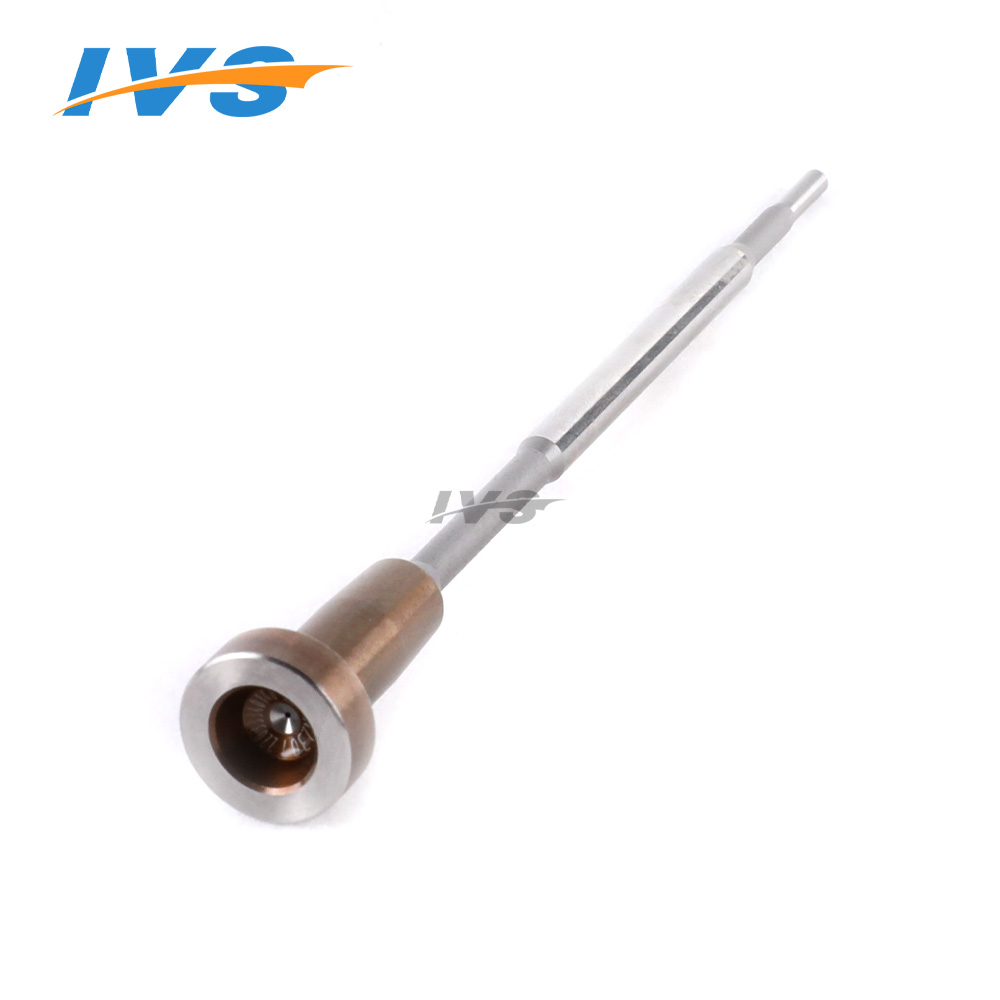

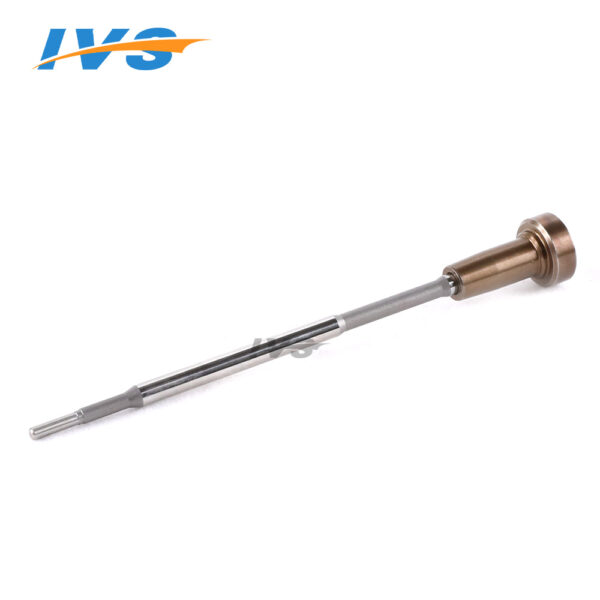

1. F00RJ01334 Injection Valve Set Introduction

The injection valve set is a critical component of the injector system, comprising the valve stem and valve cap. It is housed in the control room within the injector body and plays a pivotal role in controlling oil injection and return. This set is not only a core component but also prone to high damage rates.

Valve Cap Inspection: Use a microscope to inspect the contact surface between the valve cap and the ball for any signs of damage. If damage is detected, the valve cap should be replaced promptly.

Valve Stem Inspection:

Top of Valve Stem: Examine the top of the valve stem for any surface damage. A change in the original silver color to white indicates damage, necessitating a replacement.

Contact Area with Injector: Similarly, inspect the valve stem’s contact area with the injector for surface damage. Any change from the original silver color to white indicates the need for replacement.



2. F00RJ01334 Injection Valve Set Basic Information



Title	F00RJ01334 Injection Valve Set China Made New
SKU1	G1S8F00RJ01334
SKU2	G1L10F00RJ01334/L10000B2BJ01334
SKU3	G1N3F00RJ01334/N30000B2BJ01334
SKU4	G1F2F00RJ01334/F20000B2BJ01334



3. F00RJ01334 Injection Valve Set Application Information

• F00RJ01334 Injection Valve Set Adapted Vehicle Information

Injector Part Number	Car Model	OE Number	OE Number	OE Number	OE Number
0 445 120 047	For MITSUBISHI	ME192736	/	/	/
0 445 120 091	For MERCEDES-BENZ	ME 193983	/	/	/
/	For MITSUBISHI	ME193983	/	/	/
0 445 120 093	/	/	/	/	/



• F00RJ01334 Injection Valve Set Adapted injector Information

Injector Series	Injector Part Number	System Pressure	Re-manufactured Part Number	System Pressure	Universal Number	System Pressure
CRIN2L	0 445 120 047	/	0 986 435 635	/	0 445 120 091	1600
CRIN2L	0 445 120 091	1600	0 986 435 635	1600	/	/
CRIN2L	0 445 120 093	1600	/	/	/	/



4. F00RJ01334 Injection Valve Set Specifications And Dimensions Parameters



Injection Valve Set Size	13 cm*2 cm *2 cm
Injection Valve Set Box Size	14 cm *3 cm *3 cm
Injection Valve Set Packing Size	31 cm *12 cm
Injection Valve Set Net Weight	0.03kg
Injection Valve Set Gross Weight	0.03kg
Injection Valve Set Quality	China Made New
Injection Valve Set MOQ	4PCS

5. F00RJ01334 Injection Valve Set Spare Parts & Packing List



No.	1	2
Name	Injection Valve Set	Injection Valve Set Anti-rust Paper
Description	Injection Valve Set  Part Number F00RJ01334	Prevent the injector valve set from rusting
No.	3	4
Name	Injection Valve Set Box (Rectangle )	Injection Valve Set Box (Cylindrical )
Description	Protect the injector valve set from being damaged by colliding	Protect the injection valve set from being damaged by colliding
No.	5	6
Image		/
Name	VCI Anti-rust Bag	/
Description	Prevent the injection valve set from rusting	/



• Minors are prohibited from using the injection valve set, Valve Setanti-rust paper, valve Setbox, and VCI anti-rust bag to avoid personal injury.
• The Valve Setbox is recyclable and can be reused.
• VCI anti-rust bag is non-degradable material, please dispose of it properly after use.



6. F00RJ01334 Injection Valve Set Quality Control

• Injection Valve SetTesting

All parts of the injection valve set  have undergone precision testing, high temperature testing, low temperature testing, withstand pressure testing, leakage testing, durability testing, and various working conditions testing.

• Injection Valve SetInspection

The factory inspection of the injection valve set is undergone three inspections: full inspection, random inspection, and batch inspection. Different brands of test benches are used to test the same injection valve set for more than three times for factory inspection, and the injection valve set ‘s installation and testing environment are progressed in dust-free workshop.

• Injection Valve SetInstallation

When matching the valve cap and valve steam, Shumatt strictly complies with the standard of valve cap and valve stem clearance technical indicators to ensure that each injection valve set meets the factory standards and use standards.



7. F00RJ01334 Injection Valve Set Purchase and Delivery.

7.1. F00RJ01334 Injection Valve Set Purchase Payment Terms

Payment Terms： T/T, PayPal, Alipay, WeChat

• Please contact our salesmen for specific payment information.



7.2. F00RJ01334 Injection Valve Set Shipping Ways

Destination in China areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.

Destinations out of China’s areas：DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.



7.3. F00RJ01334 Injection Valve Set Lead Time

Lead time：Send out within 3 – 7 working days after receiving payment(Except for special pstemucts and special cases)..



7.4. F00RJ01334 Injection Valve Set Logistics Time

DHL Logistics Time:

Country or Region of Departure	Hong Kong, China	Other Countries or Regions of Asia	Australia and New Zealand	Europe	America	Other Countries
China’s Mainland	7 Days	7 Days	8 Days	8 Days	8-12 Days	7-10 Days



UPS Logistics Time:Country or Region of Departure：China’s Mainland

Country of Destination	Estimated Arrival Time	Country of Destination	Estimated Arrival Time	Country of Destination	Estimated Arrival Time
Japan	3 Days	UK	5-7 Days	Egypt	5-7 Days
Turkey	5-7 Days	Singapore	3 Days	Switzerland	5-7 Days
Bahrain	5-7 Days	Latvia	7-10 Days	New Zealand	7-10 Days
Sri Lanka	5-7 Days	Thailand	3 Days	Austria	5-7 Days
Romania	5-7 Days	Vietnam	3-5 Days	Estonia	5-7 Days
Malaysia	3-5 Days	Israel	5-7 Days	Mexico	7-10 Days
France	5-7 Days	America	5-7 Days	United Arab Emirates	5-7 Days
Italy	5-7 Days	Netherlands	5-7 Days	Bengal	7-10 Days
Lebanon	5-7 Days	Philippine	3-5 Days	Greece	7-10 Days
South Korea	3 Days	Spain	5-7 Days	Myanmar	5-7 Days
Canada	5-7 Days	Germany	5-7 Days	Saudi Arabia	7-10 Days
Portugal	5-7 Days	Australia	5-7 Days	South Africa	7-10 Days
Denmark	5-7 Days	Belgium	5-7 Days	Ukraine	7-10 Days
India	7-10 Days	Qatar	7-10 Days	Poland	5-7 Days
Indonesia	3-5 Days	Morocco	7-10 Days	Pakistan	7-10 Days
Kuwait	7-10 Days	/	/	/	/

• The logistics time is for reference only, subjectsare accordingto the actual arrival.
