| Type | Common Rail Injection Valve Set |
| Part Number | F00RJ02004 |
| Application | For Diesel Engine |
| Quality | China Made New |
| SKU | G1Z10F00RJ02004
Z10000B2BJ02004 |
| Size | 13cm *2 cm *2 cm |
| Weight | 0.03kg |
WE GIVE YOU MORE
Lorem ipsum dolor sit amet, consectetur adipiscing elit。Ut elit tellus、luctus nec ullamcorper mattis、pulvinar dapibus leo。
Lorem ipsum dolor sit amet, consectetur adipiscing elit。Ut elit tellus、luctus nec ullamcorper mattis、pulvinar dapibus leo。
Owners Manuals
Lorem ipsum dolor sit amet, consectetur adipiscing elit.Utelit tellus,luctus nec ullamcorper mattis,pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Utelit tellus, luctus nec ullamcorper mattis,pulvinar dapibus leo.
1. F00RJ02004 Injection Valve Set Introduction

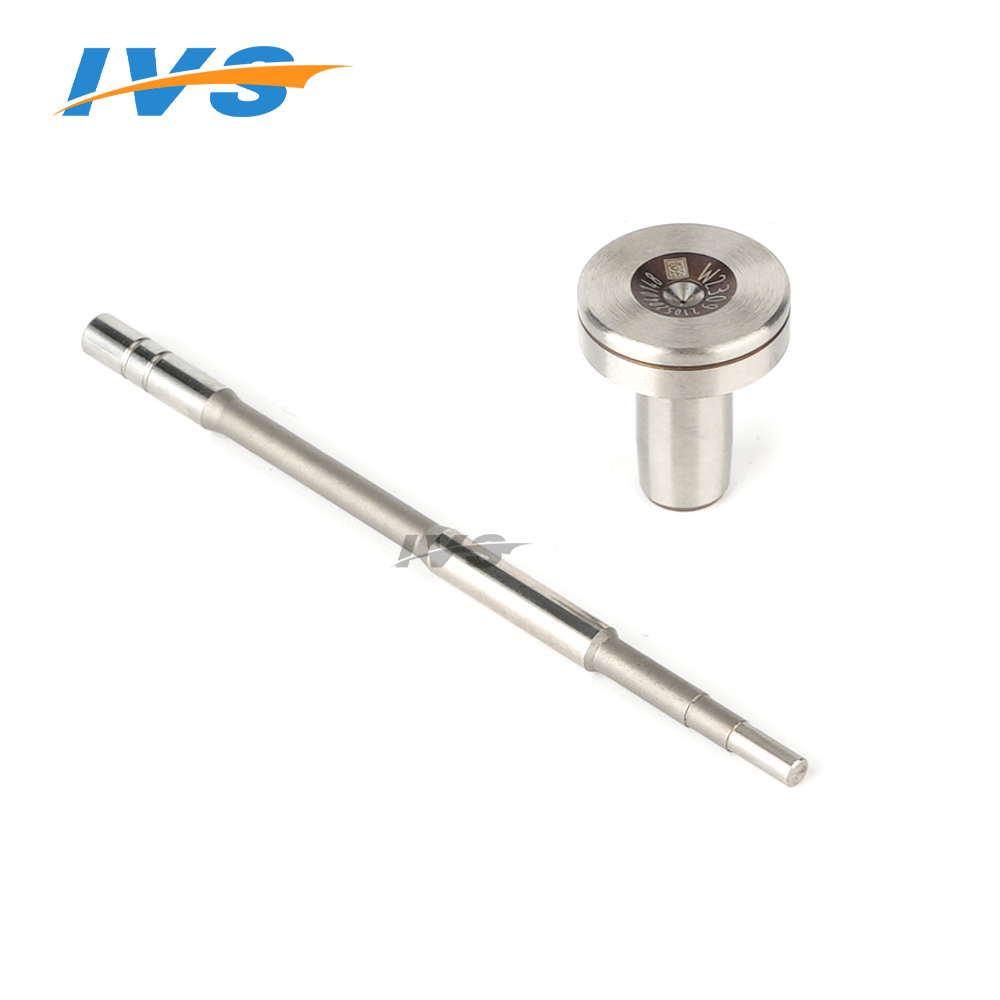

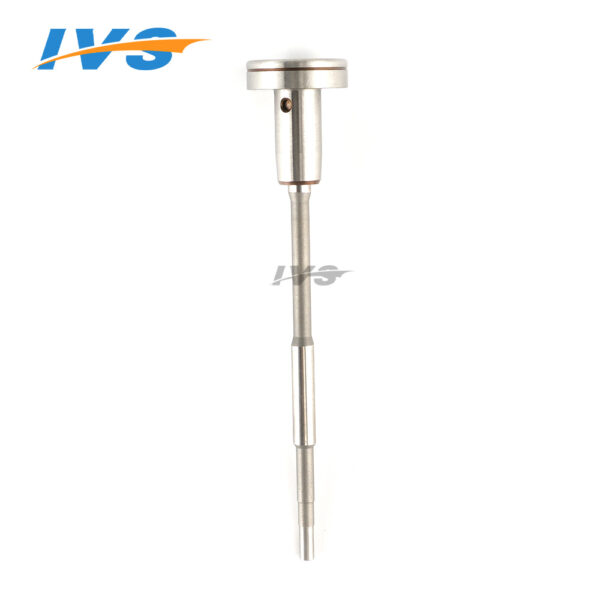

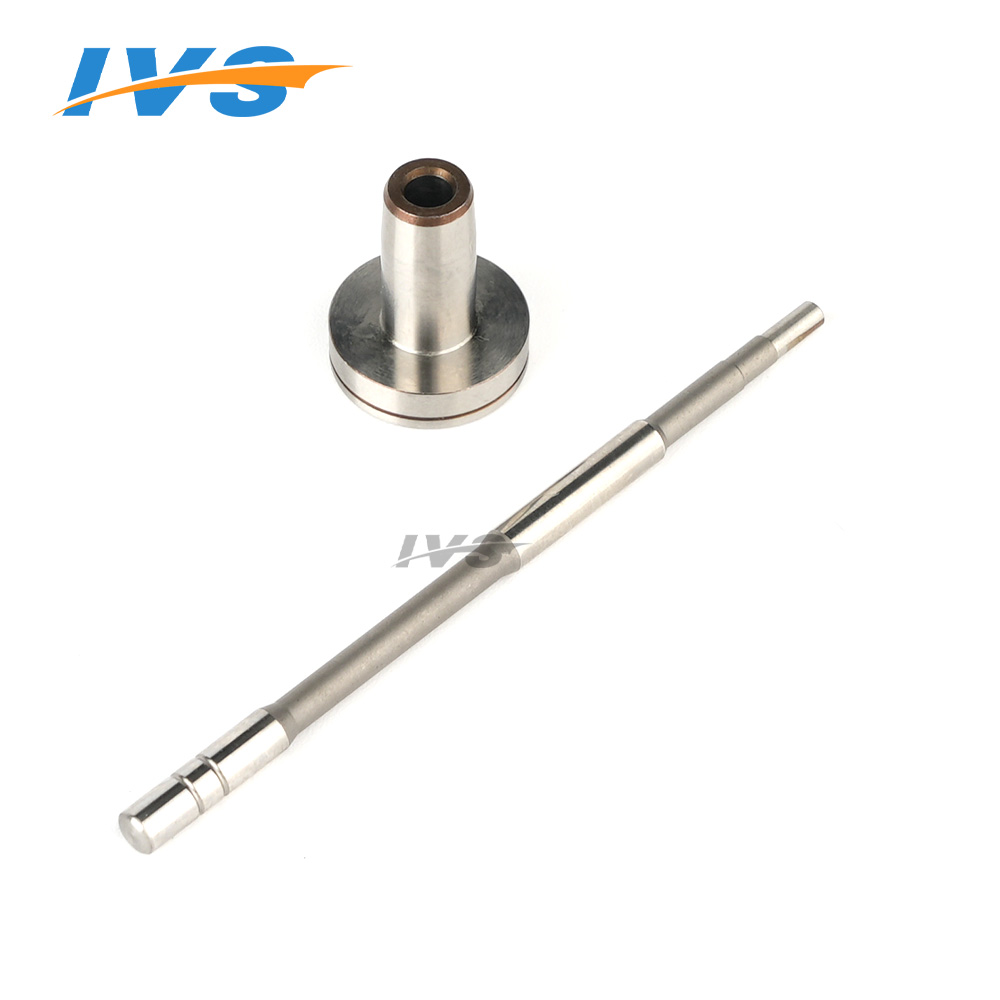

The injection valve set is a critical component of the injector system, comprising the valve stem and valve cap. It is housed in the control room within the injector body and plays a pivotal role in controlling oil injection and return. This set is not only a core component but also prone to high damage rates.
Valve Cap Inspection: Use a microscope to inspect the contact surface between the valve cap and the ball for any signs of damage. If damage is detected, the valve cap should be replaced promptly.
Valve Stem Inspection:
Top of Valve Stem: Examine the top of the valve stem for any surface damage. A change in the original silver color to white indicates damage, necessitating a replacement.
Contact Area with Injector: Similarly, inspect the valve stem’s contact area with the injector for surface damage. Any change from the original silver color to white indicates the need for replacement.
2. F00RJ02004 Injection Valve Set Basic Information
| Title | F00RJ02004 Injection Valve Set China Made New |
| SKU1 | G1Z10F00RJ02004/Z10000B2BJ02004 |
3. F00RJ02004 Injection Valve Set Application Information
- F00RJ02004 Injection Valve Set Adapted Vehicle Information
| Injector
Part Number |
Car Model | OE Number | OE Number | OE Number | OE Number | OE Number |
| 0 445 120 050 | For CUMMINS | 3 999 834 | 3 999 832 | 3 970 985 | / | / |
| 0 445 120 071 | For CUMMINS | 3 999 832 | 4 940 096 | 3 970 987 | / | / |
| 0 445 120 161 | For CUMMINS | 4 988 835 | / | / | / | / |
| For FORD | BH1X 9K526 CA | / | / | / | / | |
| For TATA (TELCO) | 570107999909 | / | / | / | / | |
| For TEMSA | 4 988 835 | / | / | / | / | |
| 0 445 120 177 | For CUMMINS | 5 254 261 | / | / | / | / |
| 0 445 120 184 | For CUMMINS | 4 981 077 | / | / | / | / |
| 0 445 120 185 | For CUMMINS | 4 981 076 | / | / | / | / |
| 0 445 120 187 | For CUMMINS | 4 983 514 | 5 256 034 | / | / | / |
| For DODGE | 68210 512AA | / | / | / | / | |
| For RAM | 68210512AA | / | / | / | / | |
| 0 445 120 188 | For CUMMINS | 4 994 928 | / | / | / | / |
| For DODGE | 68086 182AA | / | / | / | / | |
| For RAM | 68086182AA | / | / | / | / | |
| 0 445 120 193 | For CUMMINS | 5 253 220 | 5253220-NX | / | / | / |
| DODGE | 68002 012AA | 68069 384AA | 68002 012AB | R8069384AA | 68027 067AA | |
| RAM | 6806 9384AA | 6800 2012AA | 6800 2012AB | R8069384AA | / | |
| 0 445 120 204 | CUMMINS | 5 253 221 | / | / | / | / |
| DODGE | 9864 35519 | 68002 012AC | 09864 35519 | / | / | |
| 0 445 120 267 | CUMMINS | 5 269 194 | / | / | / | / |
| HINO | 89550E0072 | / | / | / | / | |
| 0 445 120 332 | CUMMINS | 5 262 128 | / | / | / | / |
| 0 445 120 336 | CUMMINS | 5 289 380 | / | / | / | / |
| 0 445 120 342 | CUMMINS | 4 994 925 | / | / | / | / |
| DODGE | 68210105-AA | / | / | / | / | |
| RAM | 68210105AA | 4 994 925 | / | / | / | |
| 0 445 120 356 | CUMMINS | 5 303 101 | / | / | / | / |
| 0 445 120 384 | CUMMINS | 5 310 954 | / | / | / | / |
- F00RJ02004 Injection Valve Set Adapted injector Information
4. F00RJ02004 Injection Valve Set Specifications And Dimensions Parameters
| Injection Valve Set Size | 13 cm*2 cm *2 cm |
| Injection Valve Set Box Size | 14 cm *3 cm *3 cm |
| Injection Valve Set Packing Size | 31 cm *12 cm |
| Injection Valve Set Net Weight | 0.03kg |
| Injection Valve Set Gross Weight | 0.03kg |
| Injection Valve Set Quality | China Made New |
| Injection Valve Set MOQ | 4PCS |
5. F00RJ02004 Injection Valve Set Spare Parts & Packing List
| No. | 1 | 2 |
| Image |  |
 |
| Name | Injection Valve Set | Injection Valve Set Anti-rust Paper |
| Description | Injection Valve Set Part Number F00RJ02004 | Prevent the injector valve set from rusting |
| No. | 3 | 4 |
| Image |  |
 |
| Name | Injection Valve Set Box (Rectangle ) | Injection Valve Set Box (Cylindrical ) |
| Description | Protect the injector valve set from being damaged by colliding | Protect the injection valve set from being damaged by colliding |
| No. | 5 | 6 |
| Image |  |
/ |
| Name | VCI Anti-rust Bag | / |
| Description | Prevent the injection valve set from rusting | / |
- Minors are prohibited from using the injection valve set, Valve Setanti-rust paper, valve Setbox, and VCI anti-rust bag to avoid personal injury.
- The Valve Setbox is recyclable and can be reused.
- VCI anti-rust bag is non-degradable material, please dispose of it properly after use.
6. F00RJ02004 Injection Valve Set Quality Control
- Injection Valve SetTesting
All parts of the injection valve set have undergone precision testing, high temperature testing, low temperature testing, withstand pressure testing, leakage testing, durability testing, and various working conditions testing.
- Injection Valve SetInspection
The factory inspection of the injection valve set is undergone three inspections: full inspection, random inspection, and batch inspection. Different brands of test benches are used to test the same injection valve set for more than three times for factory inspection, and the injection valve set ‘s installation and testing environment are progressed in dust-free workshop.
- Injection Valve SetInstallation
When matching the valve cap and valve steam, Shumatt strictly complies with the standard of valve cap and valve stem clearance technical indicators to ensure that each injection valve set meets the factory standards and use standards.
7. F00RJ02004 Injection Valve Set Purchase and Delivery.
7.1. F00RJ02004 Injection Valve Set Purchase Payment Terms
Payment Terms： T/T, PayPal, Alipay, WeChat
- Please contact our salesmen for specific payment information.
7.2. F00RJ02004 Injection Valve Set Shipping Ways
Destination in China areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.
Destinations out of China’s areas：DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.
7.3. F00RJ02004 Injection Valve Set Lead Time
Lead time：Send out within 3 – 7 working days after receiving payment(Except for special pstemucts and special cases)..
7.4. F00RJ02004 Injection Valve Set Logistics Time
DHL Logistics Time:
| Country or Region of Departure | Hong Kong, China | Other Countries or Regions of Asia | Australia and New Zealand | Europe | America | Other Countries |
| China’s Mainland | 7 Days | 7 Days | 8 Days | 8 Days | 8-12 Days | 7-10 Days |
UPS Logistics Time:Country or Region of Departure：China’s Mainland
| Country of Destination | Estimated Arrival Time | Country of Destination | Estimated Arrival Time | Country of Destination | Estimated Arrival Time |
| Japan | 3 Days | UK | 5-7 Days | Egypt | 5-7 Days |
| Turkey | 5-7 Days | Singapore | 3 Days | Switzerland | 5-7 Days |
| Bahrain | 5-7 Days | Latvia | 7-10 Days | New Zealand | 7-10 Days |
| Sri Lanka | 5-7 Days | Thailand | 3 Days | Austria | 5-7 Days |
| Romania | 5-7 Days | Vietnam | 3-5 Days | Estonia | 5-7 Days |
| Malaysia | 3-5 Days | Israel | 5-7 Days | Mexico | 7-10 Days |
| France | 5-7 Days | America | 5-7 Days | United Arab Emirates | 5-7 Days |
| Italy | 5-7 Days | Netherlands | 5-7 Days | Bengal | 7-10 Days |
| Lebanon | 5-7 Days | Philippine | 3-5 Days | Greece | 7-10 Days |
| South Korea | 3 Days | Spain | 5-7 Days | Myanmar | 5-7 Days |
| Canada | 5-7 Days | Germany | 5-7 Days | Saudi Arabia | 7-10 Days |
| Portugal | 5-7 Days | Australia | 5-7 Days | South Africa | 7-10 Days |
| Denmark | 5-7 Days | Belgium | 5-7 Days | Ukraine | 7-10 Days |
| India | 7-10 Days | Qatar | 7-10 Days | Poland | 5-7 Days |
| Indonesia | 3-5 Days | Morocco | 7-10 Days | Pakistan | 7-10 Days |
| Kuwait | 7-10 Days | / | / | / | / |
- The logistics time is for reference only, subjectsare accordingto the actual arrival.
