| Type | Common Rail Injection Valve Set |
| Part Number | F00VC01358 |
| Application | For Diesel Engine |
| Quality | China Made New |
| SKU | G1S8F00VC01359
G1F1F00VC01359 F10000B2BC01359 G1F2F00VC01359 F20000B2BC01359 |
| Size | 13cm *2 cm *2 cm |
| Weight | 0.03kg |
WE GIVE YOU MORE
Lorem ipsum dolor sit amet, consectetur adipiscing elit。Ut elit tellus、luctus nec ullamcorper mattis、pulvinar dapibus leo。
Lorem ipsum dolor sit amet, consectetur adipiscing elit。Ut elit tellus、luctus nec ullamcorper mattis、pulvinar dapibus leo。
Owners Manuals
Lorem ipsum dolor sit amet, consectetur adipiscing elit.Utelit tellus,luctus nec ullamcorper mattis,pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Utelit tellus, luctus nec ullamcorper mattis,pulvinar dapibus leo.

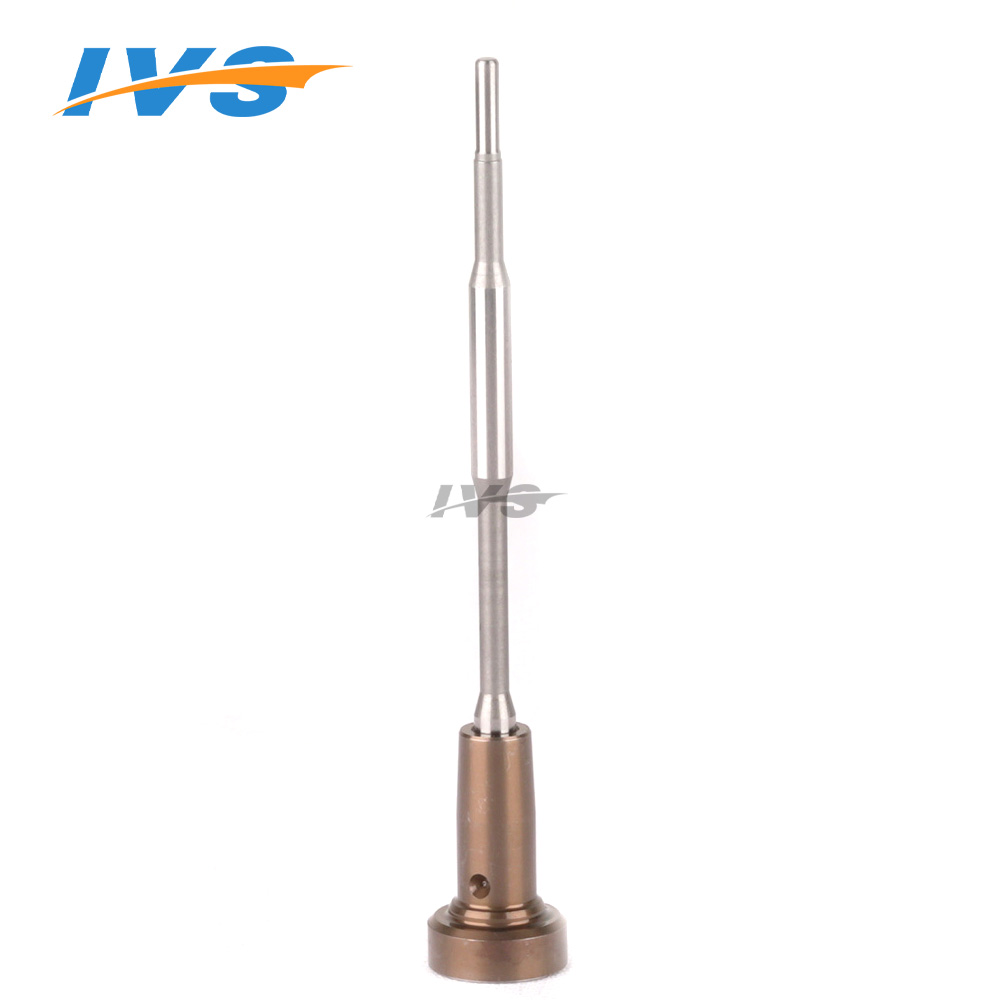

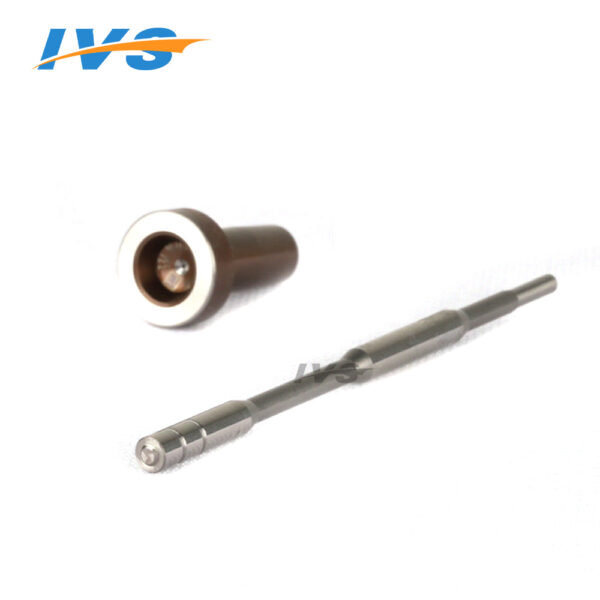

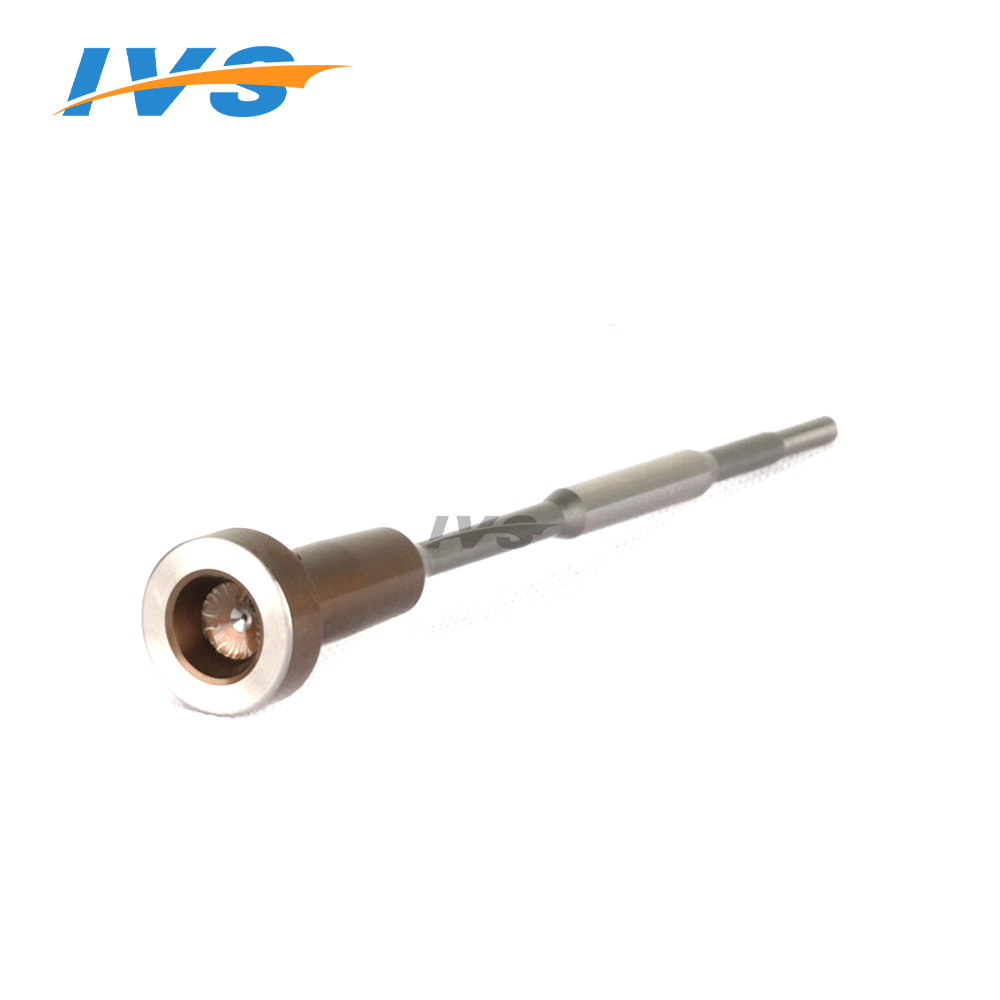

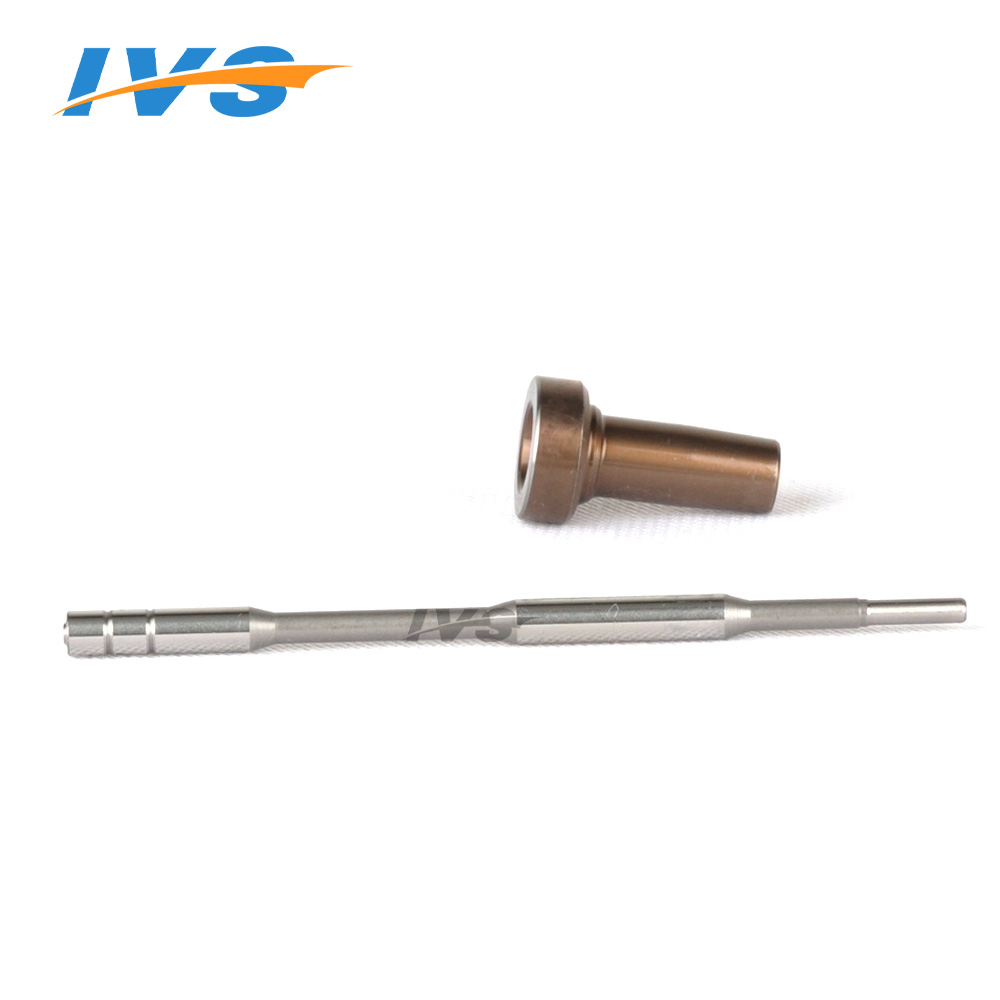

1. F00VC01359 Injection Valve Set Introduction
The injection valve set is a critical component of the injector system, comprising the valve stem and valve cap. It is housed in the control room within the injector body and plays a pivotal role in controlling oil injection and return. This set is not only a core component but also prone to high damage rates.
Valve Cap Inspection: Use a microscope to inspect the contact surface between the valve cap and the ball for any signs of damage. If damage is detected, the valve cap should be replaced promptly.
Valve Stem Inspection:
Top of Valve Stem: Examine the top of the valve stem for any surface damage. A change in the original silver color to white indicates damage, necessitating a replacement.
Contact Area with Injector: Similarly, inspect the valve stem’s contact area with the injector for surface damage. Any change from the original silver color to white indicates the need for replacement.
2. F00VC01359 Injection Valve Set Basic Information
| Title | F00VC01359 Injection Valve Set China Made New |
| SKU1 | G1S8F00VC01359 |
| SKU2 | G1F1F00VC01359 |
| SKU3 | F10000B2BC01359 |
| SKU4 | G1F2F00VC01359 |
| SKU5 | F20000B2BC01359 |
3. F00VC01359 Injection Valve Set Application Information
- F00VC01359 Injection Valve Set Adapted Vehicle Information
| Injector
Part Number |
Car Model | OE Number | OE Number | OE Number |
| 0 445 110 305 | JMC (JIANGLING) | 1112100CAT | / | / |
| 0 445 110 313 | FOTON (BEIJING FUTIAN ENVIR.) | J0445110313A7596 | / | / |
| 0 445 110 332 | GREAT WALL | 1112100-E05 | / | / |
| 0 445 110 335 | JENS & CATTEL | 1100200FA040 | / | / |
| 0 445 110 343 | JENS & CATTEL | 1100200FA080 | / | / |
| 0 445 110 344 | / | / | / | / |
| 0 445 110 345 | YANGCHAI (YANGZHOU DIESEL ENG) | 2014355 | / | / |
| 0 445 110 346 | QUANCHAI (ANHUI QUANCH. POWER) | 4D22E41000 | / | / |
| 0 445 110 347 | QUANCHAI (ANHUI QUANCH. POWER) | 4D22E41000 | / | / |
| 0 445 110 355 | FAW | 1112100-D02 | / | / |
| 0 445 110 357 | / | / | / | / |
| 0 445 110 364 | / | / | / | / |
| 0 445 110 365 | / | / | / | / |
| 0 445 110 379 | / | / | / | / |
| 0 445 110 380 | GONOW | 1112300-40300 | / | / |
| 0 445 110 395 | FAW | 1112100B35 | / | / |
| 0 445 110 397 | / | / | / | / |
| 0 445 110 404 | GREAT WALL | 1112100-E06-A1 | / | / |
| 0 445 110 407 | GREAT WALL | 1112100-E06-A1 | / | / |
| 0 445 110 412 | PIAGGIO | 889478 | / | / |
| 0 445 110 416 | / | / | / | / |
| 0 445 110 417 | QUANCHAI (ANHUI QUANCH. POWER) | 3408022510000 | / | / |
| 0 445 110 427 | / | / | / | / |
| 0 445 110 445 | / | / | / | / |
| 0 445 110 446 | / | / | / | / |
| 0 445 110 448 | / | / | / | / |
| 0 445 110 449 | QUANCHAI (ANHUI QUANCH. POWER) | 4408522510000 | / | / |
| 0 445 110 454 | JMC (JIANGLING) | 11112100ABA | / | / |
| 0 445 110 462 | GONOW | 1112300-40305 | / | / |
| 0 445 110 465 | / | / | ||
| 0 445 110 466 | JAC (JIANGHUAI AUTOMOBILE) | 1100200FA130 | / | / |
| 0 445 110 481 | / | / | / | / |
| 0 445 110 509 | / | / | / | / |
| 0 445 110 512 | / | / | / | / |
| 0 445 110 515 | / | / | / | / |
| 0 445 110 516 | YANGCHAI (YANGZHOU DIESEL ENG) | 2014994 | / | / |
| 0 445 110 517 | YANGCHAI (YANGZHOU DIESEL ENG) | 2100626 | / | / |
| 0 445 110 521 | / | / | / | / |
| 0 445 110 531 | FOTON (BEIJING FUTIAN ENVIR.) | E049332000065 | / | / |
| 0 445 110 533 | / | / | / | / |
| 0 445 110 537 | / | / | / | / |
| 0 445 110 539 | JMC (JIANGLING) | CN1-9K546-A1A | / | / |
| 0 445 110 541 | FAW | 1112100AB81-0000 | / | / |
| 0 445 110 549 | / | / | / | / |
| 0 445 110 623 | / | / | / | / |
| 0 445 110 628 | / | / | / | / |
| 0 445 110 629 | JMC (JIANGLING) | 1112100ABYB1 | / | / |
| 0 445 110 630 | JMC (JIANGLING) | DP1-9K546-AA | / | / |
| 0 445 110 631 | JMC (JIANGLING) | DP1-9K546-AA | / | / |
| 0 445 110 669 | / | / | / | / |
| 0 445 110 670 | JAC (JIANGHUAI AUTOMOBILE) | 1100200FA040BJ-1 | / | / |
| 0 445 110 672 | / | / | / | / |
| 0 445 110 691 | FOTON (BEIJING FUTIAN ENVIR.) | E049332000113 | / | / |
| 0 445 110 710 | JMC (JIANGLING) | 1100200FA171 | / | / |
- F00VC01359 Injection Valve Set Adapted injector Information
| Injector Series | Injector Part Number | System Pressure | Re-manufactured Part Number | System Pressure | Universal Number | System Pressure |
| CRI2-14 | 0 445 110 305 | 1400 | 0 986 435 231 | / | / | / |
| CRI2-14 | 0 445 110 313 | 1400 | / | / | / | / |
| CRI2-14 | 0 445 110 332 | / | / | / | / | / |
| CRI2-14 | 0 445 110 335 | 1400 | / | / | 0 445 110 512 | 1400 |
| CRI2-14 | 0 445 110 343 | 1400 | / | / | 0 445 110 412 | 1400 |
| CRI2-14 | 0 445 110 344 | / | / | / | / | / |
| CRI2-14 | 0 445 110 345 | 1400 | / | / | 0 445 110 344 | / |
| CRI2-14 | 0 445 110 346 | / | / | / | 0 445 110 347 | / |
| CRI2-14 | 0 445 110 347 | / | / | / | 0 445 110 346 | / |
| CRI2-14 | 0 445 110 355 | 1400 | / | / | / | / |
| CRI2-14 | 0 445 110 357 | / | / | / | / | / |
| CRI2-14 | 0 445 110 364 | 1400 | / | / | 0 445 110 365 | / |
| CRI2-14 | 0 445 110 365 | / | / | / | 0 445 110 364 | 1400 |
| CRI2-14 | 0 445 110 379 | 1400 | / | / | / | / |
| CRI2-14 | 0 445 110 380 | 1400 | / | / | 0 445 110 379 | 1400 |
| CRI2-14 | 0 445 110 395 | / | / | / | / | / |
| CRI2-14 | 0 445 110 397 | 1400 | / | / | / | / |
| CRI2-14 | 0 445 110 404 | / | / | / | 0 445 110 407 | 1400 |
| CRI2-14 | 0 445 110 407 | 1400 | / | / | 0 445 110 404 | |
| CRI2-14 | 0 445 110 412 | 1400 | / | / | 0 445 110 343 | 1400 |
| CRI2-14 | 0 445 110 416 | 1400 | / | / | 0 445 110 417 | 1400 |
| CRI2-14 | 0 445 110 417 | 1400 | / | / | 0 445 110 416 | 1400 |
| CRI2-14 | 0 445 110 427 | / | / | / | 0 445 110 426 | 1400 |
| CRI2-14 | 0 445 110 445 | 1400 | / | / | 0 445 110 446 | 1400 |
| CRI2-14 | 0 445 110 446 | 1400 | / | / | 0 445 110 445 | 1400 |
| CRI2-14 | 0 445 110 448 | 1400 | / | / | 0 445 110 449 | 1400 |
| CRI2-14 | 0 445 110 449 | 1400 | / | / | 0 445 110 448 | 1400 |
| CRI2-16 | 0 445 110 454 | 1600 | / | / | ||
| CRI2-14 | 0 445 110 462 | 1400 | / | / | 0 445 110 481 | 1350 |
| CRI2-16 | 0 445 110 465 | 1600 | / | / | 0 445 110 466 | 1600 |
| CRI2-16 | 0 445 110 466 | 1600 | / | / | 0 445 110 465 | 1600 |
| CRI1-13 | 0 445 110 481 | 1350 | / | / | 0 445 110 462 | 1400 |
| CRI2-16 | 0 445 110 509 | / | / | / | / | / |
| CRI2-14 | 0 445 110 512 | 1400 | / | / | 0 445 110 335 | 1400 |
| CRI2-16 | 0 445 110 515 | 1600 | / | / | / | / |
| CRI2-16 | 0 445 110 516 | 1600 | / | / | / | / |
| CRI2-16 | 0 445 110 517 | 1600 | / | / | / | / |
| CRI2-14 | 0 445 110 521 | 1400 | / | / | / | / |
| CRI2-16 | 0 445 110 531 | 1600 | / | / | / | / |
| CRI2-16 OHW | 0 445 110 533 | 1600 | / | / | / | / |
| CRI2-16 | 0 445 110 537 | 1600 | / | / | / | / |
| CRI2-16 | 0 445 110 539 | 1600 | / | / | 0 445 110 538 | 1600 |
| CRI2-16 | 0 445 110 541 | 1,600 | / | / | / | / |
| CRI2-16 | 0 445 110 549 | / | / | / | 0 445 110 548 | / |
| CRI2-16 | 0 445 110 623 | 1600 | / | / | / | / |
| CRI1-16 | 0 445 110 628 | 1600 | 0 986 435 334 | / | 0 445 110 629 | 1600 |
| CRI1-16 | 0 445 110 629 | 1600 | 0 986 435 334 | / | 0 445 110 628 | 1600 |
| CRI1-16 | 0 445 110 630 | 1600 | 0 986 435 326 | / | 0 445 110 631 | 1600 |
| CRI1-16 | 0 445 110 631 | 1600 | 0 986 435 326 | / | 0 445 110 630 | 1600 |
| CRI1-13 | 0 445 110 669 | / | / | / | 0 445 110 670 | 1400 |
| CRI2-14 | 0 445 110 670 | 1400 | / | / | 0 445 110 669 | / |
| CRI1-16 | 0 445 110 672 | 1600 | / | / | / | / |
| CRI1-16 | 0 445 110 691 | 1600 | / | / | 0 445 111 016 | / |
| CRI1-16 | 0 445 110 710 | 1600 | / | / | / | / |
4. F00VC01359 Injection Valve Set Specifications And Dimensions Parameters
| Injection Valve Set Size | 13 cm*2 cm *2 cm |
| Injection Valve Set Box Size | 14 cm *3 cm *3 cm |
| Injection Valve Set Packing Size | 31 cm *12 cm |
| Injection Valve Set Net Weight | 0.03kg |
| Injection Valve Set Gross Weight | 0.03kg |
| Injection Valve Set Quality | China Made New / China Made New High Quality |
| Injection Valve Set MOQ | 4PCS |
5. F00VC01359 Injection Valve Set Spare Parts & Packing List
| No. | 1 | 2 |
| Image |  |
 |
| Name | Injection Valve Set | Injection Valve Set Anti-rust Paper |
| Description | Injection Valve Set Part Number F00VC01359 | Prevent the injector valve set from rusting |
| No. | 3 | 4 |
| Image |  |
 |
| Name | Injection Valve Set Box (Rectangle ) | Injection Valve Set Box (Cylindrical ) |
| Description | Protect the injector valve set from being damaged by colliding | Protect the injection valve set from being damaged by colliding |
| No. | 5 | 6 |
| Image |  |
/ |

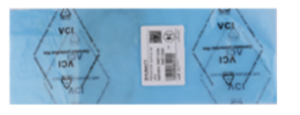

| Name | VCI Anti-rust Bag | / |
| Description | Prevent the injection valve set from rusting | / |
- Minors are prohibited from using the injection valve set, Valve Setanti-rust paper, valve Setbox, and VCI anti-rust bag to avoid personal injury.
- The Valve Setbox is recyclable and can be reused.
- VCI anti-rust bag is non-degradable material, please dispose of it properly after use.
6. F00VC01359 Injection Valve Set Quality Control
- Injection Valve SetTesting
All parts of the injection valve set have undergone precision testing, high temperature testing, low temperature testing, withstand pressure testing, leakage testing, durability testing, and various working conditions testing.
- Injection Valve SetInspection
The factory inspection of the injection valve set is undergone three inspections: full inspection, random inspection, and batch inspection. Different brands of test benches are used to test the same injection valve set for more than three times for factory inspection, and the injection valve set ‘s installation and testing environment are progressed in dust-free workshop.
- Injection Valve SetInstallation
When matching the valve cap and valve steam, Shumatt strictly complies with the standard of valve cap and valve stem clearance technical indicators to ensure that each injection valve set meets the factory standards and use standards.
7. F00VC01359 Injection Valve Set Purchase and Delivery.
7.1. F00VC01359 Injection Valve Set Purchase Payment Terms
Payment Terms： T/T, PayPal, Alipay, WeChat
- Please contact our salesmen for specific payment information.
7.2. F00VC01359 Injection Valve Set Shipping Ways
Destination in China areas: SF Express, Debon Express, the corresponding logistics company can be provided according to customer requirements in special cases.
Destinations out of China’s areas：DHL, UPS, FedEx, TNT air, ocean or other shipping methods required by customers.
7.3. F00VC01359 Injection Valve Set Lead Time
Lead time：Send out within 3 – 7 working days after receiving payment(Except for special pstemucts and special cases).
7.4. F00VC01359 Injection Valve Set Logistics Time
DHL Logistics Time:
| Country or Region of Departure | Hong Kong, China | Other Countries or Regions of Asia | Australia and New Zealand | Europe | America | Other Countries |
| China’s Mainland | 7 Days | 7 Days | 8 Days | 8 Days | 8-12 Days | 7-10 Days |
UPS Logistics Time:Country or Region of Departure：China’s Mainland
| Country of Destination | Estimated Arrival Time | Country of Destination | Estimated Arrival Time | Country of Destination | Estimated Arrival Time |
| Japan | 3 Days | UK | 5-7 Days | Egypt | 5-7 Days |
| Turkey | 5-7 Days | Singapore | 3 Days | Switzerland | 5-7 Days |
| Bahrain | 5-7 Days | Latvia | 7-10 Days | New Zealand | 7-10 Days |
| Sri Lanka | 5-7 Days | Thailand | 3 Days | Austria | 5-7 Days |
| Romania | 5-7 Days | Vietnam | 3-5 Days | Estonia | 5-7 Days |
| Malaysia | 3-5 Days | Israel | 5-7 Days | Mexico | 7-10 Days |
| France | 5-7 Days | America | 5-7 Days | United Arab Emirates | 5-7 Days |
| Italy | 5-7 Days | Netherlands | 5-7 Days | Bengal | 7-10 Days |
| Lebanon | 5-7 Days | Philippine | 3-5 Days | Greece | 7-10 Days |
| South Korea | 3 Days | Spain | 5-7 Days | Myanmar | 5-7 Days |
| Canada | 5-7 Days | Germany | 5-7 Days | Saudi Arabia | 7-10 Days |
| Portugal | 5-7 Days | Australia | 5-7 Days | South Africa | 7-10 Days |
| Denmark | 5-7 Days | Belgium | 5-7 Days | Ukraine | 7-10 Days |
| India | 7-10 Days | Qatar | 7-10 Days | Poland | 5-7 Days |
| Indonesia | 3-5 Days | Morocco | 7-10 Days | Pakistan | 7-10 Days |
| Kuwait | 7-10 Days | / | / | / | / |
- The logistics time is for reference only, subjectsare accordingto the actual arrival.
