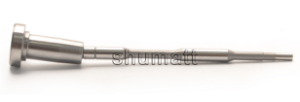

1. F00RJ00339 Injection Valve Set Introduction
The injection valve set is a critical component of the injector system, comprising the valve stem and valve cap. It is housed in the control room within the injector body and plays a pivotal role in controlling oil injection and return. This set is not only a core component but also prone to high damage rates.
Valve Cap Inspection: Use a microscope to inspect the contact surface between the valve cap and the ball for any signs of damage. If damage is detected, the valve cap should be replaced promptly.
Valve Stem Inspection:
Top of Valve Stem: Examine the top of the valve stem for any surface damage. A change in the original silver color to white indicates damage, necessitating a replacement.
Contact Area with Injector: Similarly, inspect the valve stem’s contact area with the injector for surface damage. Any change from the original silver color to white indicates the need for replacement.
2. F00RJ00339 Injection Valve Set Spare Parts & Packing List
| No. | 1 | 2 |
| Image |  |
 |
| Name | Injection Valve Set | Injection Valve Set Anti-rust Paper |
| Description | Injection Valve Set Part Number F00RJ00339 | Prevent the injector valve set from rusting |
| No. | 3 | 4 |
| Image |  |
 |
| Name | Injection Valve Set Box (Rectangle ) | Injection Valve Set Box (Cylindrical ) |
| Description | Protect the injector valve set from being damaged by colliding | Protect the injection valve set from being damaged by colliding |
| No. | 5 | 6 |
| Image |  |
/ |
| Name | VCI Anti-rust Bag | / |
| Description | Prevent the injection valve set from rusting | / |
3. F00RJ00339 Injection Valve Set Installation Precautions
- Clean the injection valve setin an ultrasonic cleaner for 3-5 minutes before installation, so as to make the stains, dust, rust-proof oil oxides, paraffin base, naphthenic base, intermediate base, salt, lead naphthenate, zinc naphthenate, sodium petroleum sulfonate, barium petroleum sulfonate, calcium petroleum sulfonate, tallow diamine trioleate, rosinamine on the surface of the injection valve set fall off.
- Use compressed air to clean the cleaning fluid attached to the surface of the injection valve setafter cleaning, and clean it up to the standard of use.
- When installing the steel ball and ball seat, pay attention to the steel ball should close tightly to the oil return hole at the top of the valve cap,as shown below:
Pic No.1
- When installing the valve stem, make sure that the valve stem and the bonnet must ensure that the valve stem can move smoothly in it, as shown below:
Pic No.2
- When installing the injection valve set, the oil inlet position should be 180°between the oil inlet positionof the injector body.
