| Type | Common Rail Injection Valve Set |
| Part Number | F00RJ01941 |
| Application | For Diesel Engine |
| Quality | China Made New |
| SKU | G1S8F00RJ01941
G1F1F00RJ01941 F10000B2BJ01941 L10000B2BJ01941 G1F2F00RJ01941 F20000B2BJ01941 |
| Size | 13cm *2 cm *2 cm |
| Weight | 0.03kg |
WE GIVE YOU MORE
Lorem ipsum dolor sit amet, consectetur adipiscing elit。Ut elit tellus、luctus nec ullamcorper mattis、pulvinar dapibus leo。
Lorem ipsum dolor sit amet, consectetur adipiscing elit。Ut elit tellus、luctus nec ullamcorper mattis、pulvinar dapibus leo。
Owners Manuals
Lorem ipsum dolor sit amet, consectetur adipiscing elit.Utelit tellus,luctus nec ullamcorper mattis,pulvinar dapibus leo.
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Utelit tellus, luctus nec ullamcorper mattis,pulvinar dapibus leo.

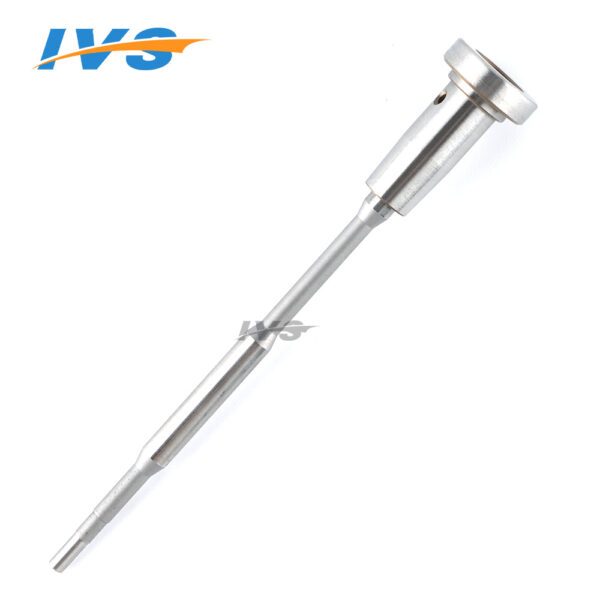

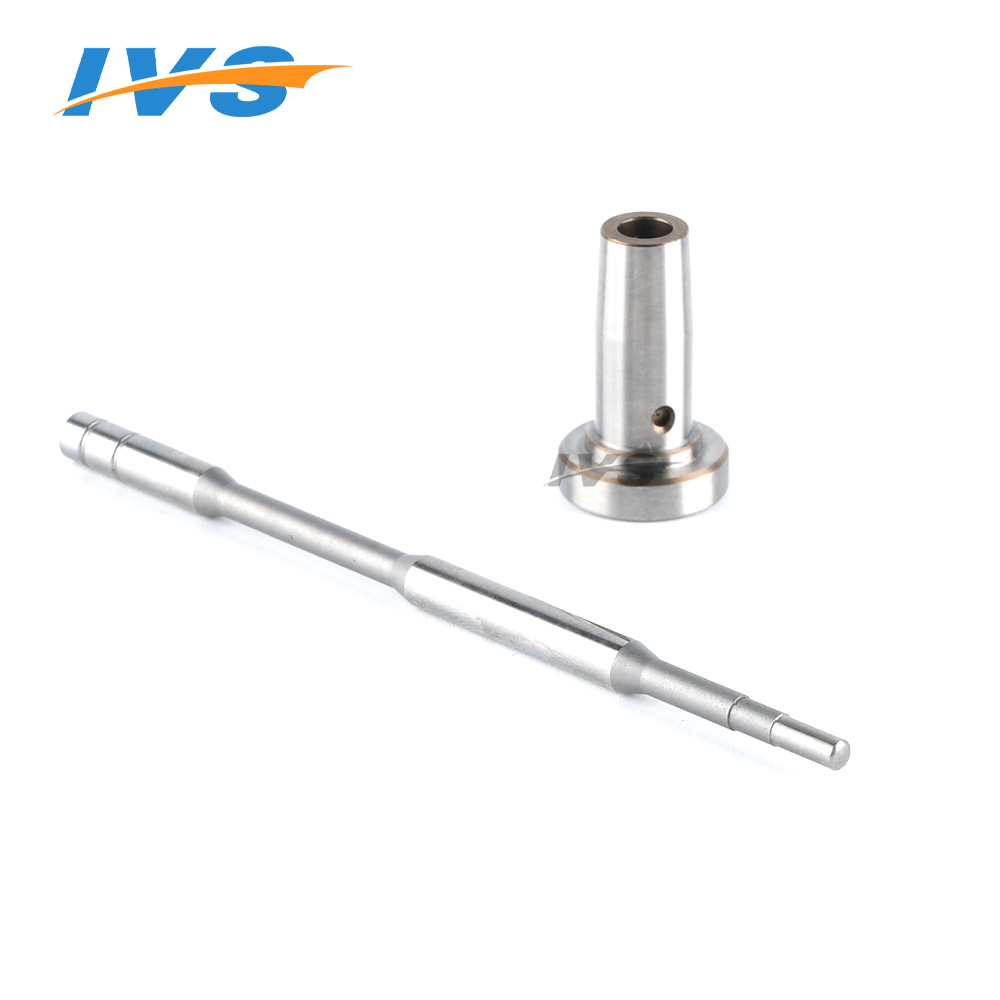

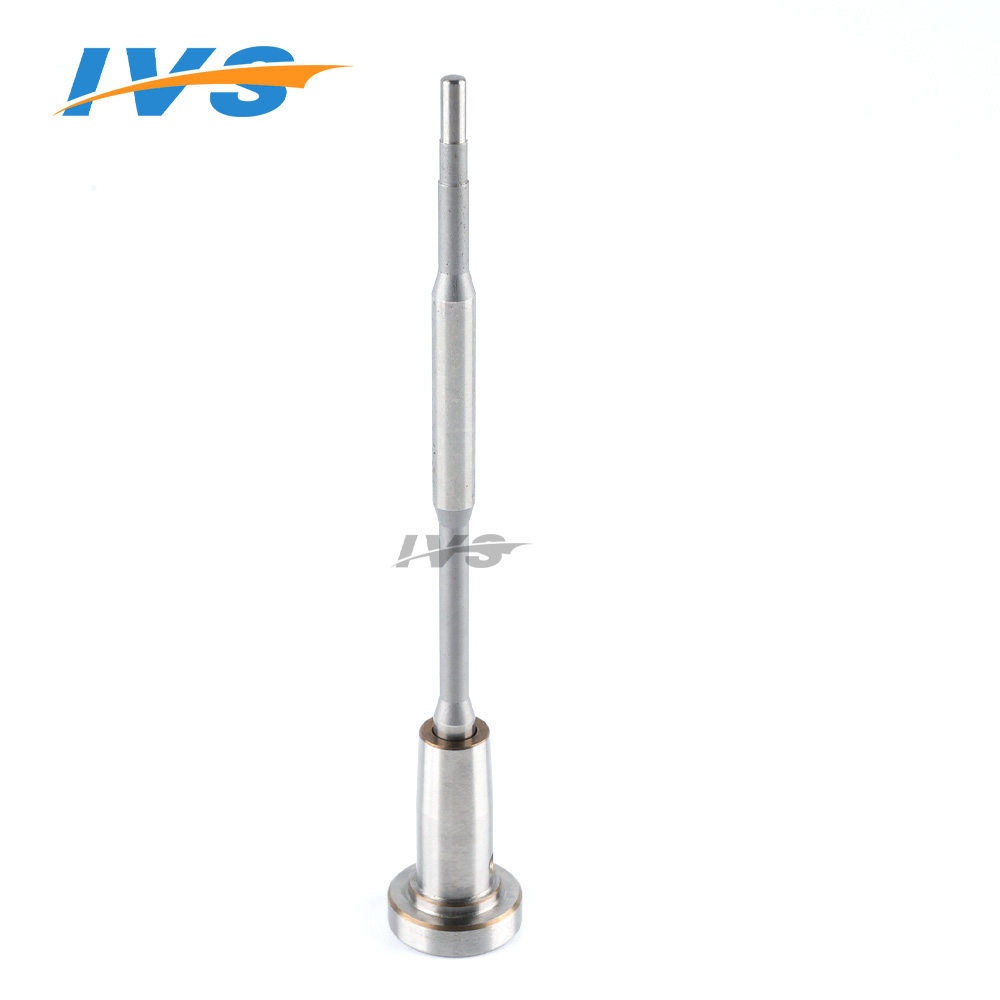

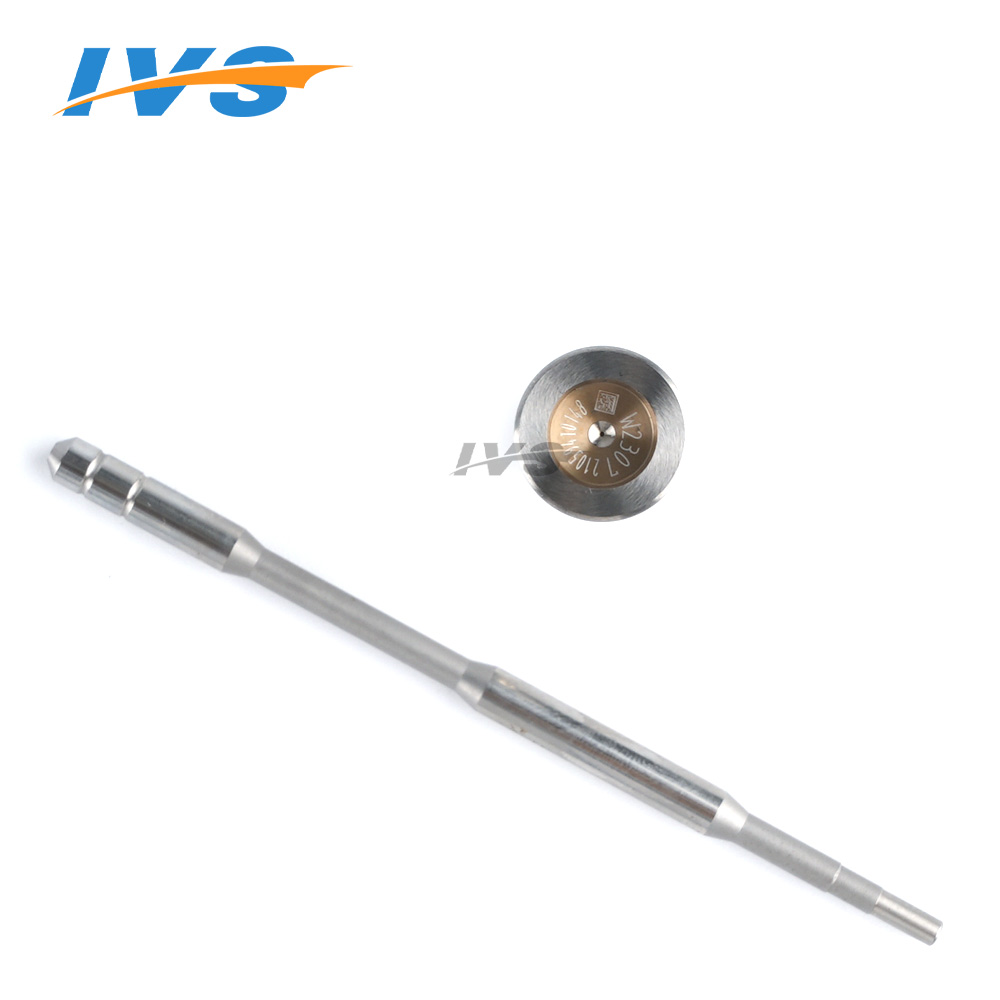

1. F00RJ01941 Injection Valve Set Introduction
The injection valve set is a critical component of the injector system, comprising the valve stem and valve cap. It is housed in the control room within the injector body and plays a pivotal role in controlling oil injection and return. This set is not only a core component but also prone to high damage rates.
Valve Cap Inspection: Use a microscope to inspect the contact surface between the valve cap and the ball for any signs of damage. If damage is detected, the valve cap should be replaced promptly.
Valve Stem Inspection:
Top of Valve Stem: Examine the top of the valve stem for any surface damage. A change in the original silver color to white indicates damage, necessitating a replacement.
Contact Area with Injector: Similarly, inspect the valve stem’s contact area with the injector for surface damage. Any change from the original silver color to white indicates the need for replacement.
2. F00RJ01941 Injection Valve Set Basic Information
| Title | F00RJ01941 Injection Valve Set China Made New |
| SKU1 | G1S8F00RJ01941 |
| SKU2 | G1F1F00RJ01941/ F10000B2BJ01941 |
| SKU3 | G1L10F00RJ01941/ L10000B2BJ01941 |
| SKU4 | G1F2F00RJ01941/ F20000B2BJ01941（High Quality） |
3. F00RJ01941 Injection Valve Set Application Information
- F00RJ01941 Injection Valve Set Adapted Vehicle Information
| Injector
Part Number |
Car Model | OE Number | OE Number | OE Number | OE Number | OE Number |
| 0 445 120 029 | For CUMMINS | 3 965 721 | 3 973 060 | 4 939 061 | / | / |
| 0 445 120 037 | For CUMMINS | 3 965 750 | / | / | / | / |
| 0 445 120 070 | For CUMMINS | 3 976 631 | 4 930 485 | / | / | / |
| 0 445 120 097 | For CUMMINS | 4 934 411 | / | / | / | / |
| 0 445 120 112 | For CASE | 875 815 65 | / | / | / | / |
| / | For CUMMINS | 4 940 439 | / | / | / | / |
| 0 445 120 115 | For CASE | 875 381 23 | / | / | / | / |
| / | For CUMMINS | 4 940 171 | / | / | / | / |
| 0 445 120 120 | For CUMMINS | 4 945 807 | / | / | / | / |
| / | For FORD | BG7X 9K526 AA | / | / | / | / |
| / | For VW (VOLKSWAGEN) | 2T2 130 201 D | / | / | / | / |
| 0 445 120 121 | For CUMMINS | 4 940 640 | / | / | / | / |
| / | For DONGFENG CUMMINS ENGINE (DCEC) | 4940640 | / | / | / | / |
| 0 445 120 122 | CUMMINS | 4 942 359 | / | / | / | / |
| / | DONGFENG CUMMINS ENGINE (DCEC) | 4942359 | / | / | / | / |
| 0 445 120 125 | CUMMINS | 4 940 170 | / | / | / | / |
| 0 445 120 133 | CUMMINS | 4 945 463 | 4 993 482 | / | / | / |
| 0 445 120 140 | CUMMINS | 4 945 316 | / | / | / | / |
| VW (VOLKSWAGEN) | 2T2 198 133 | / | / | / | / | |
| 0 445 120 144 | CASE | 877 080 24 | / | / | / | / |
| CUMMINS | 4 944 476 | / | / | / | / | |
| 0 445 120 159 | CUMMINS | 4 988 301 | / | / | / | / |
| 0 445 120 236 | CUMMINS | 5 263 308 | / | / | / | / |
| KOMATSU | 6745-12-3100 | / | / | / | / | |
| CASE | 843 468 12 | / | / | / | / | |
| 0 445 120 237 | CASE | 843 475 19 | / | / | / | / |
| CUMMINS | 5 263 310 | / | / | / | / | |
| 0 445 120 240 | CASE | 875 381 23 | / | / | / | / |
| CUMMINS | 5 263 306 | / | / | / | / | |
| FIAT | 87538123 | / | / | / | / | |
| 0 445 120 241 | CUMMINS | 5 263 304 | / | / | / | / |
| 0 445 120 253 | CUMMINS | 5 263 313 | / | / | / | / |
| 0 445 120 272 | CASE | 87581565 | / | / | / | / |
| CUMMINS | 5 263 305 | / | / | / | / | |
| KOMATSU | 5263305 | / | / | / | / |
- F00RJ01941 Injection Valve Set Adapted injector Information
4. F00RJ01941 Injection Valve Set Specifications And Dimensions Parameters
| Injection Valve Set Size | 13 cm*2 cm *2 cm |
| Injection Valve Set Box Size | 14 cm *3 cm *3 cm |
| Injection Valve Set Packing Size | 31 cm *12 cm |
| Injection Valve Set Net Weight | 0.03kg |
| Injection Valve Set Gross Weight | 0.03kg |
| Injection Valve Set Quality | China Made New |
| Injection Valve Set MOQ | 4PCS |
5. F00RJ01941 Injection Valve Set Spare Parts & Packing List
| No. | 1 | 2 |
| Image |  |
 |
| Name | Injection Valve Set | Injection Valve Set Anti-rust Paper |
| Description | Injection Valve Set Part Number F00RJ01941 | Prevent the injector valve set from rusting |
| No. | 3 | 4 |
| Image |  |
 |
| Name | Injection Valve Set Box (Rectangle ) | Injection Valve Set Box (Cylindrical ) |
| Description | Protect the injector valve set from being damaged by colliding | Protect the injection valve set from being damaged by colliding |
| No. | 5 | 6 |
| Image |  |
/ |
| Name | VCI Anti-rust Bag | / |
| Description | Prevent the injection valve set from rusting | / |
- Minors are prohibited from using the injection valve set, Valve Setanti-rust paper, valve Setbox, and VCI anti-rust bag to avoid personal injury.
- The Valve Setbox is recyclable and can be reused.
- VCI anti-rust bag is non-degradable material, please dispose of it properly after use.
6. F00RJ01941 Injection Valve Set Quality Control
- Injection Valve SetTesting
All parts of the injection valve set have undergone precision testing, high temperature testing, low temperature testing, withstand pressure testing, leakage testing, durability testing, and various working conditions testing.
- Injection Valve SetInspection
The factory inspection of the injection valve set is undergone three inspections: full inspection, random inspection, and batch inspection. Different brands of test benches are used to test the same injection valve set for more than three times for factory inspection, and the injection valve set ‘s installation and testing environment are progressed in dust-free workshop.
- Injection Valve SetInstallation
When matching the valve cap and valve steam, Shumatt strictly complies with the standard of valve cap and valve stem clearance technical indicators to ensure that each injection valve set meets the factory standards and use standards.
